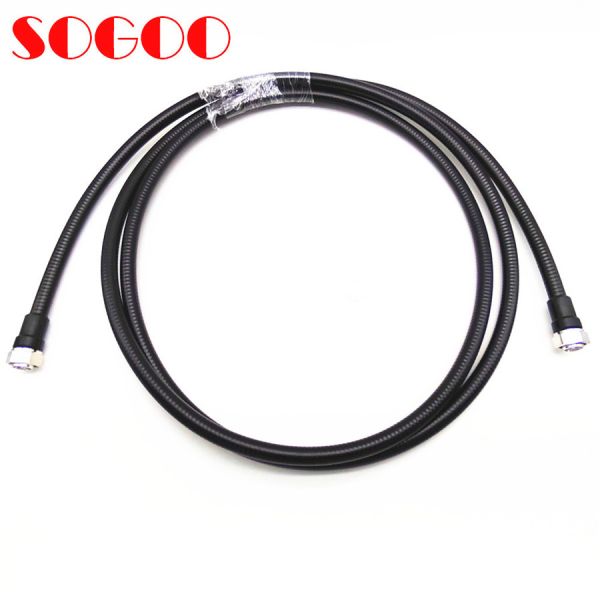

4.3-10 Male to 4.3-10 Male 1/2" Superflex RF Feeder Cable /
Corrugated Low PIM Microwave Coaxial Cable
1.Inner Conductor:Smooth Copper Tube/ Copper Coating Aluminum/
Helix Copper Tube
2.Dielectric:Physical Foaming Polyethelene(PE)
3.Outer Conductor:Corrugated Copper Tube/ Annularity Copper Tube/
Helix Copper Tube
4.Jacket:Black PE or Low Smoke Halogen-free Fire-retardant
| Type | Impedance | Diameter of Conductor | Jacket | Weight |
| (Ohms) | Inner(mm) | Outer(mm) | Thickness(mm) | Diameter(mm) | (kg/km) |
| 1-5/8" | 50 | 17.30 | 46.50 | 1.75 | 50.00 | 1310 |
| 1-1/4" | 50 | 13.10 | 35.80 | 1.80 | 39.40 | 980 |
| 7/8" | 50 | 9.05 | 24.90 | 1.30 | 27.50 | 530 |
| 5/8" | 50 | 7.05 | 19.80 | 1.20 | 22.20 | 400 |
| 1/2" | 50 | 4.80 | 13.80 | 1.00 | 15.80 | 240 |
| 3/8" | 50 | 3.15 | 9.53 | 0.85 | 11.20 | 135 |
| 7/8" S | 50 | 9.42 | 24.90 | 1.05 | 27.50 | 430 |
| 1/2" S | 50 | 3.60 | 12.20 | 0.70 | 13.20 | 120 |
| 1/4" S | 50 | 1.91 | 6.40 | 0.60 | 7.40 | 80 |
Model:
1.1-5/8" feeder cable, RF coaxial cable, RF cable.
2.1-1/4" feeder cable, RF coaxial cable, RF cable.
3.7/8" feeder cable, RF coaxial cable, RF cable.
4.5/8" feeder cable, RF coaxial cable, RF cable.
5.mig wire feeder, RF coaxial cable, RF cable.
6.3/8" feeder cable, RF coaxial cable, RF cable.
7.7/8" S feeder cable, RF coaxial cable, RF cable.
8.1/2" S feeder cable, RF coaxial cable, RF cable.
9.3/8" S feeder cable, RF coaxial cable, RF cable.
Q&A
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
AS customer requirements
Inner packing:Bubble
Outer packing:carton
Foam + Blister + Vacuumize +Carton
Any kind of packing can be mixed.
Delivery:7-15Days after payments
Look forward to your inquiry to 1/2"S Feeder Jumper RF cable Corrugated Super flex Low PIM
microwave coaxial cable.
